stainless steel 1.4401, given dimensions: maximum cable diameter x diameter of the screw x total length of the clamp
These clamps are used to make loops and releasable end connections on all kinds of ropes (wire, textile, hemp, etc.), which can then be used for mounting and hanging purposes. To do this, one end of the rope needs to be bent around to form a loop and the clamp placed over the doubled-up rope at the bottom end of the loop and screwed tight. No exact information can be given as to the stability of such a clamp connection but it can be noted that the stability of this duplex clamp is definitely (and naturally) higher than that of the SIMPLEX CLAMP, which works on the same principle but is somewhat smaller and thereby good for uses that have smaller load capacity requirements.
When making a loop (especially in the case of a wire cable) the curve radius should be kept to a minimum in order to avoid crimping the cable and permanently damaging it. The radius of the loop on a wire cable should be at least 18 times its diameter and for a fibre rope it should be 6 times the diameter. A CABLE EYE STIFFENER can also be used to stabilize such loops or slings.

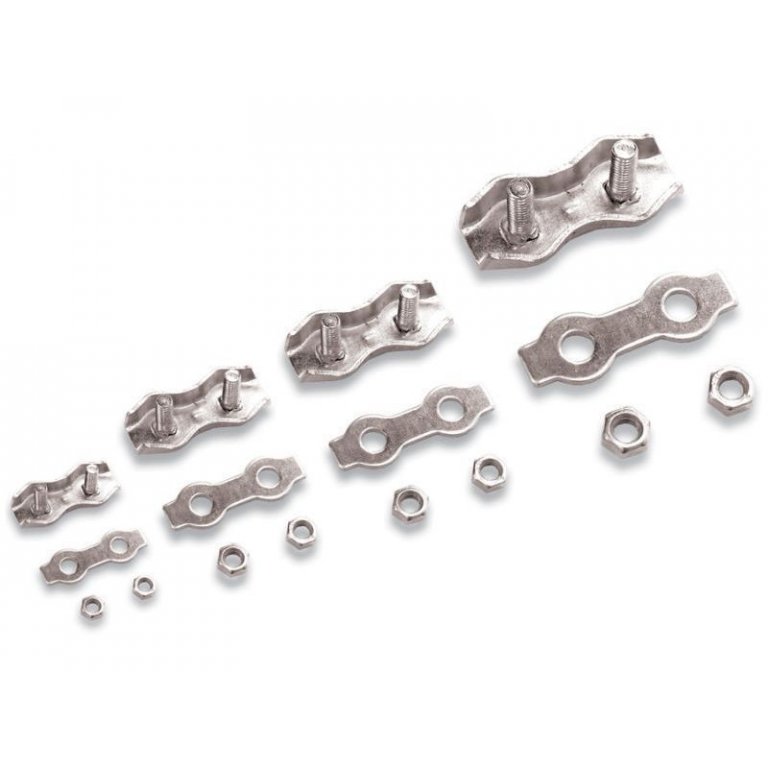

Duplex wire cable clamp
