- Dettagli
- material softwood from sustainable European forests
- Shortcuts D = depth of bar, BW = bar width
- Descrizione
The classic standard stretcher bar with a profile cross-section of 19 x 45 is perfect for making rectangular and square stretcher frames with edge lengths up to 2500 x 2500 mm. Starting at the 800 mm length, the bar has a slot in the middle (2 slots starting at 2000 mm) where intermediate bars can be inserted for stability purposes (Center Bar f. Stretcher Frame). The bars can also be mounted crosswise over each other. The number of bars needed is determined by halving the number of slots in the four frame bars: a frame with an edge length of 1000 x 1000 requires, then, 2 intermediate bars that can be lain over each other crosswise (cross braces).
Standard stretcher bars are optimized for canvas prints; i.e. they have a prominently rounded outer edge over which the printed canvas can be stretched without having the print ink peel off. In addition, the rounded, raised edges create a clearance between the stretched canvas and the frame, which assures that the frame will not push through it when the canvas is primed.
Standard stretcher bars are finger-jointed; i.e. destabilizing elements in the wood like knots and fissures are removed, the flange ends cut into wedge shapes, pushed together and glued. The finger jointing produces a sturdy connection that is capable of bearing loads.
In order to assemble and stretch a stretcher frame the following items are required:
- 4 stretcher bars
- 8 wooden wedges
- 1-6 intermediate (center) bars (for side lengths of 800 mm and more)
- Hammer
- Stapler with 4-6 mm staples
- Fabric for stretching
- Canvas stretching pliers

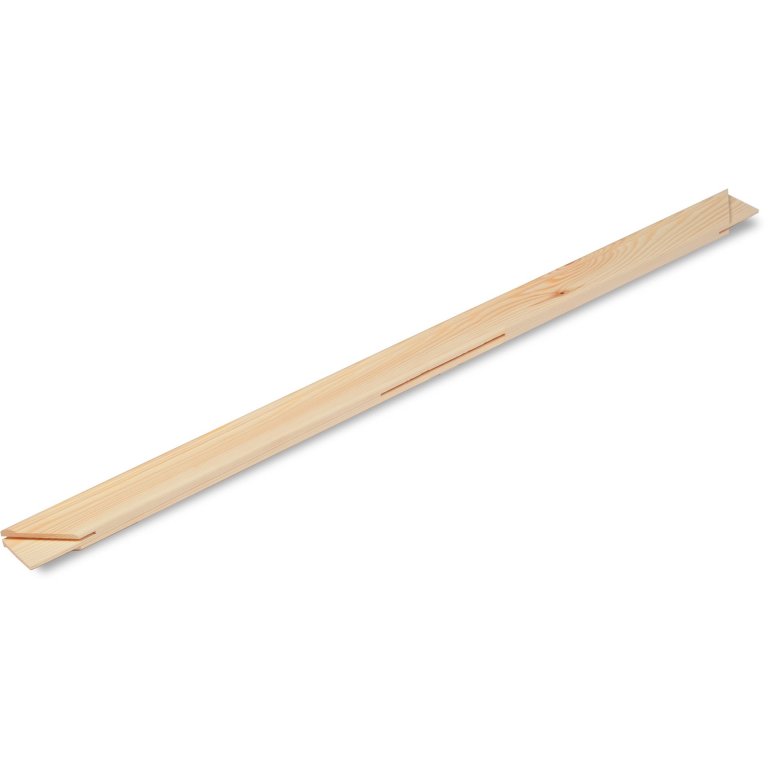

Listello standard per telaio h=19mm, b= 45 mm
- with a slotting
- with two slots
- without slotting
- 180 mm
- 200 mm
- 240 mm
- 250 mm
- 300 mm
- 350 mm
- 400 mm
- 450 mm
- 500 mm
- 550 mm
- 600 mm
- 650 mm
- 700 mm
- 750 mm
- 800 mm
- 850 mm
- 900 mm
- 950 mm
- 1.000 mm
- 1.050 mm
- 1.100 mm
- 1.150 mm
- 1.200 mm
- 1.250 mm
- 1.300 mm
- 1.350 mm
- 1.400 mm
- 1.450 mm
- 1.500 mm
- 1.550 mm
- 1.600 mm
- 1.650 mm
- 1.700 mm
- 1.750 mm
- 1.800 mm
- 1.850 mm
- 1.900 mm
- 1.950 mm
- 2.000 mm
- 45 mm x 19 mm
The wedges required for stretching can be found under WOOD WEDGES FOR STRETCHER FRAMES.
